Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable

Name: Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable
Brand: Halogen Free Cable
Price: 0.20 USD

Brand Name : Halogen Free Cable

Model Number : TH-880162

Certification : UL, CSA, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.20~0.55 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10,000,000 meters monthly

Delivery Time : 5~10 working days

Packaging Details : 915 meters per carton, subject to the customized dimensions of product.

Category : Customized Cable

Feature : AWM Approved

Rated : 80C degree, 600V

Conductor : Oxygen free copper strands

Jacket : Thermoplastic Polyurethane

Standard : 100% RoHS Compliant

Contact Now

Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable

Customized Cable is the most featured products of Tongheng business. Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable is one of the excellent example. Its remarkable advantage is multi cores and coloured coded conductors for robotics use purpose.

Here below is the product properties:

Conductor quantity: 2C to 55C

Surface marked: AWM approval marking.

Application: robotics

To be customized per customers request.

Product parameters:

TPU Cable	Conductor Structure	Insulation Thickness	Nominal Diameter	Screened Coverage	Sheath Thickness	Overall Diameter	Conductor Resistance
TPU Cable	AWG	mm	mm	%	mm	mm	Ω/KM(20℃)
2C	30	0.76	1.90	≥65	0.38	5.80	381.00
2C	28	0.76	2.00	≥65	0.38	6.10	239.00
2C	26	0.76	2.10	≥65	0.38	6.20	150.00
2C	24	0.76	2.20	≥65	0.38	6.40	94.20
2C	22	0.76	2.40	≥65	0.38	6.80	59.40
2C	20	0.76	2.50	≥65	0.38	7.20	36.70
2C	18	0.76	2.80	≥65	0.38	7.80	23.20
2C	16	0.76	3.10	≥65	0.38	10.00	14.60
3C	30	0.76	1.90	≥65	0.38	7.70	381.00
3C	28	0.76	2.00	≥65	0.38	7.90	239.00
3C	26	0.76	2.10	≥65	0.38	8.10	150.00
3C	24	0.76	2.20	≥65	0.38	8.30	94.20
3C	22	0.76	2.40	≥65	0.38	8.70	59.40
3C	20	0.76	2.50	≥65	0.38	9.20	36.70
3C	18	0.76	2.80	≥65	0.38	9.80	23.20
4C	30	0.76	1.90	≥65	0.38	7.90	381.00
4C	28	0.76	2.00	≥65	0.38	8.10	239.00
4C	26	0.76	2.10	≥65	0.38	8.40	150.00
4C	24	0.76	2.20	≥65	0.38	8.70	94.20
4C	22	0.76	2.40	≥65	0.38	9.10	59.40
4C	20	0.76	2.50	≥65	0.38	9.70	36.70
5C	30	0.76	1.90	≥65	0.38	8.20	381.00
5C	28	0.76	2.00	≥65	0.38	8.50	239.00
5C	26	0.76	2.10	≥65	0.38	8.60	150.00
5C	24	0.76	2.20	≥65	0.38	9.00	94.20
5C	22	0.76	2.40	≥65	0.38	9.60	59.40
6C	30	0.76	1.90	≥65	0.38	8.60	381.00
6C	28	0.76	2.00	≥65	0.38	8.90	239.00
6C	26	0.76	2.10	≥65	0.38	9.20	150.00
6C	24	0.76	2.20	≥65	0.38	9.50	94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.

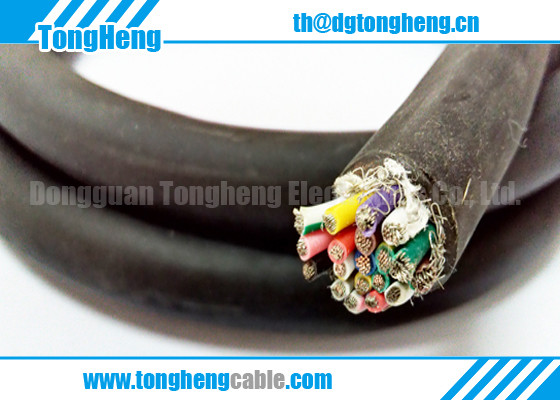

Coloured Coded conductors AWM Approval Marked Robotics Customized TPU Cable
